NGTK expulsion fuse cutouts by Eswari Anand
Fuse Cutouts (NGTK - Expulsion Type)
We supply NGTK expulsion fuse cutouts manufactured by Eswari Anand, designed to provide safe, reliable, and efficient protection for electrical distribution networks. These cutouts ensure rapid fault clearance, protecting systems against overloads and short-circuit currents.
Key Features
- High resistance to ageing and environmental conditions
- UV-resistant construction for long service life
- Very high dielectric strength
- Protection against moisture ingress
- Flexible application across various systems
- Smooth, trouble-free operation
- Reliable and consistent performance
Standards & Compliance
Manufactured and tested as per:
- IS 9385 (Part 2)
- IEC 60282 (Part 2)
- NEMA SG-2-1986
- ANSI C37.41-1994
- ANSI C37.42-J 989
Applications
These expulsion fuse cutouts (DDLO) are suitable for system ratings from 10 kV to 36 kV and are widely used for:
- Overhead distribution line protection
- Transformer protection
- Capacitor bank protection
They are compatible with K-type and T-type fuselinks, with current ratings ranging from 1 A to 200 A, depending on system requirements.
Ratings
- Voltage ratings: 11/12 kV, 22/24 kV, 33/36 kV
- Current capacity: up to 100 A and 200 A
Note
Selection of appropriate fuselinks should be based on system specifications and manufacturer guidelines for optimal protection.

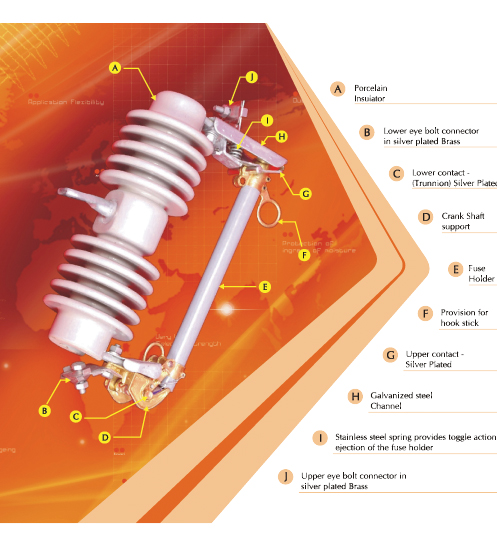

Product image: NGTK expulsion fuse cutout
